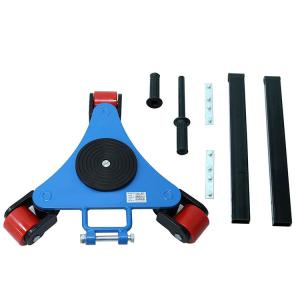

YLG Series Rotating Swivel Roll Skates Capacity Loading 500Kg-4000kg

  • 1
  • 2
  • 3

Brand Name : Sinolift

Model Number : YLG

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000sets/mouth

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product Name : YLG Series Rotating Swivel Roll Skates Capacity Loading 500Kg-4000kg

Load Capacity : 500-4000Kg

Number of Roller : 3-5 pcs

PU Roller : φ50×60mm

Pad Height : 90-110mm

Pad Width : 450-535mm

Pad Depth : 410-510mm

Pad Diameter : 150-165mm

Net Weight : 13-37Kg

Warranty : 1 year

After Service : On-line service,Spare parts

Contact Now

Feature:

Heavy duty dolly structure with top plate.
Rotating roller provide 360 degree rotating with maximum maneuverability.

Specification:

Model YLG500 YLG1000 YLG2000 YLG4000
Load Capacity kg 500 1000 2000 4000
Number of Roller pcs 3 4 3 5
PU Roller mm φ50×60 φ50×60 φ80×70 φ80×70
Pad Height mm 90 90 110 110
Pad Width mm 400 450 500 585
Pad Depth mm 410 510 410 510
Pad Diameter mm 150 150 165 165
Net Weight kg 13 17 25 37
